ARK offers small diameter tubing in pre-cut lengths from stock or custom, stainless steel tubing can be made to order. Small diameter stainless steel tubes is used by companies across numerous industries including Aerospace, Automotive, Electronics, Oil and Ga, Fiber Optics, Renewable Energy, and Medical Device.

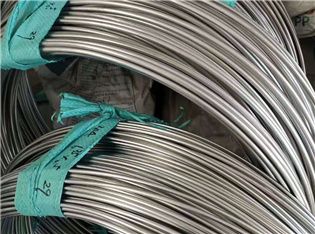

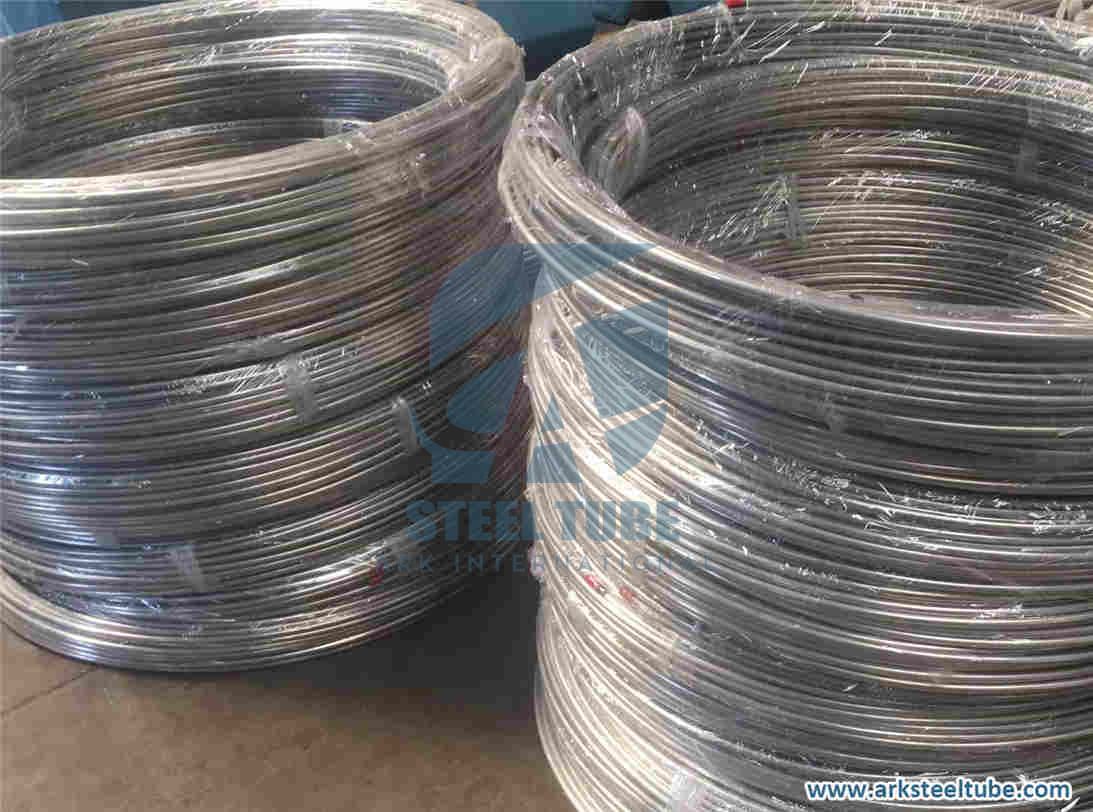

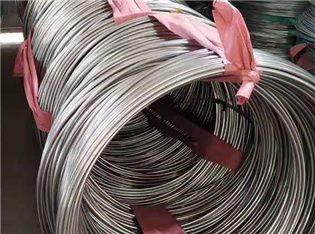

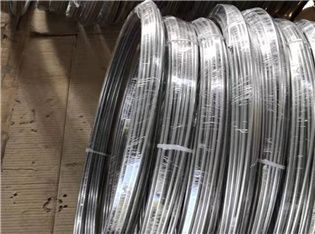

TP316/316L 1/4 inch Stainless Steel Heating Tubing In Coil Seamless Coiled Tubing | ||||||||||
| Outside Diameter | 3.2-25.4mm | |||||||||
| Wall Thickness | 0.2-2.5mm | |||||||||
| Length | As customer's requirement; In coil or in straight. | |||||||||
| Standard | ASTM A213/ ASME SA213, ASTM A269/ASME SA269, EN10216-5, etc. | |||||||||
| Grade | TP304, TP304L, TP316, TP316L, TP321, TP247H, etc. | |||||||||
| Delivery Condition | Pickled, Polished, Bright Annealed | |||||||||
| Technique | Seamless/Welded | |||||||||
| Application | Automotive industry, Aircraft/Aerospace, Instrumentation & Electrical, Chemical Industry, etc. | |||||||||
| Marking | LOGO, Standard, Grade, Size, Heat Number. | |||||||||
| Package | Woven bag, wooden cases, or as per customer's requirement. | |||||||||
| Quality Requirement | Mill Test Certificate (EN 10204/3.1); Third Part Inspection is acceptable. | |||||||||
| Normal Size | |||||
| OD 3/16” | WT0.02” | 4.76x0.51mm | OD3/16” | WT0.028” | 4.76x0.71mm |
| OD3/16” | WT0.035” | 4.76x0.89mm | OD3/16” | WT0.049” | 4.76x1.24mm |
| OD0.24” | WT0.04” | 6x1mm | OD0.24” | WT0.06” | 6x1.5mm |
| OD1/4” | WT0.02” | 6.35x0.51mm | OD1/4” | WT0.028” | 6.35x0.71mm |
| OD1/4” | WT0.035” | 6.35x0.89mm | OD1/4” | WT0.049” | 6.35x1.24mm |
| OD1/4” | WT0.065” | 6.35x1.65mm | OD5/16” | WT0.028” | 7.94x0.71mm |
| OD5/16” | WT0.035” | 7.94x0.89mm | OD5/16” | WT0.049” | 7.94x1.24mm |
| OD5/16” | WT0.065” | 7.94x1.65mm | OD3/8” | WT0.028” | 9.53x0.71mm |
| OD3/8” | WT0.035” | 9.53x0.89mm | OD3/8” | WT0.049” | 9.53x1.24mm |
| OD3/8” | WT0.065” | 9.53x1.65mm | OD0.4” | WT0.04” | 10x1mm |
| OD0.4” | WT0.06” | 10x1.5mm | OD0.4” | WT0.079” | 10x2mm |
| OD0.47” | WT0.065” | 12x1mm | OD0.47” | WT0.06” | 12x1.5mm |
| OD1/2” | WT0.028” | 12.7x0.71mm | OD1/2” | WT0.035” | 12.7x0.89mm |
| OD1/2” | WT0.049” | 12.7x1.24mm | OD1/2” | WT0.065” | 12.7x1.65mm |
| OD0.55” | WT0.04” | 14x1mm | OD0.55” | WT0.06” | 14x1.5mm |
| OD5/8” | WT0.028” | 15.88x0.71mm | OD5/8” | WT0.035” | 15.88x0.89mm |
| OD5/8” | WT0.049” | 15.88x1.24mm | OD5/8” | WT0.065” | 15.88x1.65mm |
| OD5/8” | WT0.083” | 15.88x2.11mm | OD0.63” | WT0.065” | 16x1mm |
| OD0.63” | WT0.06” | 16x1.5mm | OD0.63” | WT0.079” | 16x2mm |
| OD3/4” | WT0.04” | 19.05x1mm | OD3/4” | WT0.049” | 19.05x1.24mm |
| OD3/4” | WT0.065” | 19.05x1.65mm | OD3/4” | WT0.083” | 19.05x2.11mm |
| OD1” | WT0.049” | 25.4x1.24mm | OD1” | WT0.0665” | 25.4x1.65mm |
| OD1” | WT0.083” | 25.4x2.11mm | OD1” | WT0.1” | 25.4x2.54mm |
Application:
Instrument Tubing
Chromatography tubing
Hydraulic Tubing
High Pressure Tubing
Cleaned Tubing
Multi Core Tubing
Chemical Injection Tubing
Heat Exchanger
Etc.
Inspection:
PMI Test
Hydraulic Test
Eddy Current Test
Non-Destructive Test
Etc.
