This is more commonly referred to as a Bright Annealing (BA) finish. Material with a No. 1 finish is cold rolled using highly polished rolls in contact with the steel surface. This smooths and brightens the surface.
The smoothness and reflectiveness of the surface improves as the material is rolled to thinner and thinner sizes. Any annealing which needs to be done in order to effect the required reduction in gauge, and the final anneal, is effected in a very closely controlled inert atmosphere. No oxidation or scaling of the surface therefore occurs and there is no need for additional pickling and passivation.
The final surface developed can have "MIRROR" type finish similar in appearance to the highly polished No. 7 and No. 8 Finishes. Delivery Condition: Bright annealed or O/D polished (180,240,320,400 Grit)

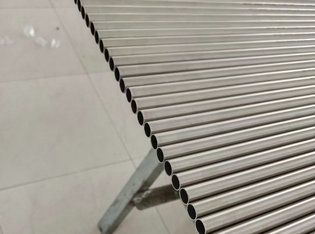

| BA Tubing Polished TP316 304 Stainless Steel Bright Annealed Tube 9/16 * 0.188 inch 14.29 x 4.78mm | ||||||||||
| Outside Diameter | 3.2-25.4mm | |||||||||
| Wall Thickness | 0.2-2.5mm | |||||||||
| Length | As customer's requirement; In coil or in straight. | |||||||||
| Standard | ASTM A213/ ASME SA213, ASTM A269/ASME SA269, EN10216-5, etc. | |||||||||
| Grade | TP304, TP304L, TP316, TP316L, TP321, TP247H, etc. | |||||||||
| Delivery Condition | Pickled, Polished, Bright Annealed | |||||||||
| Technique | Seamless/Welded | |||||||||
| Application | Automotive industry, Aircraft/Aerospace, Instrumentation & Electrical, Chemical Industry, etc. | |||||||||

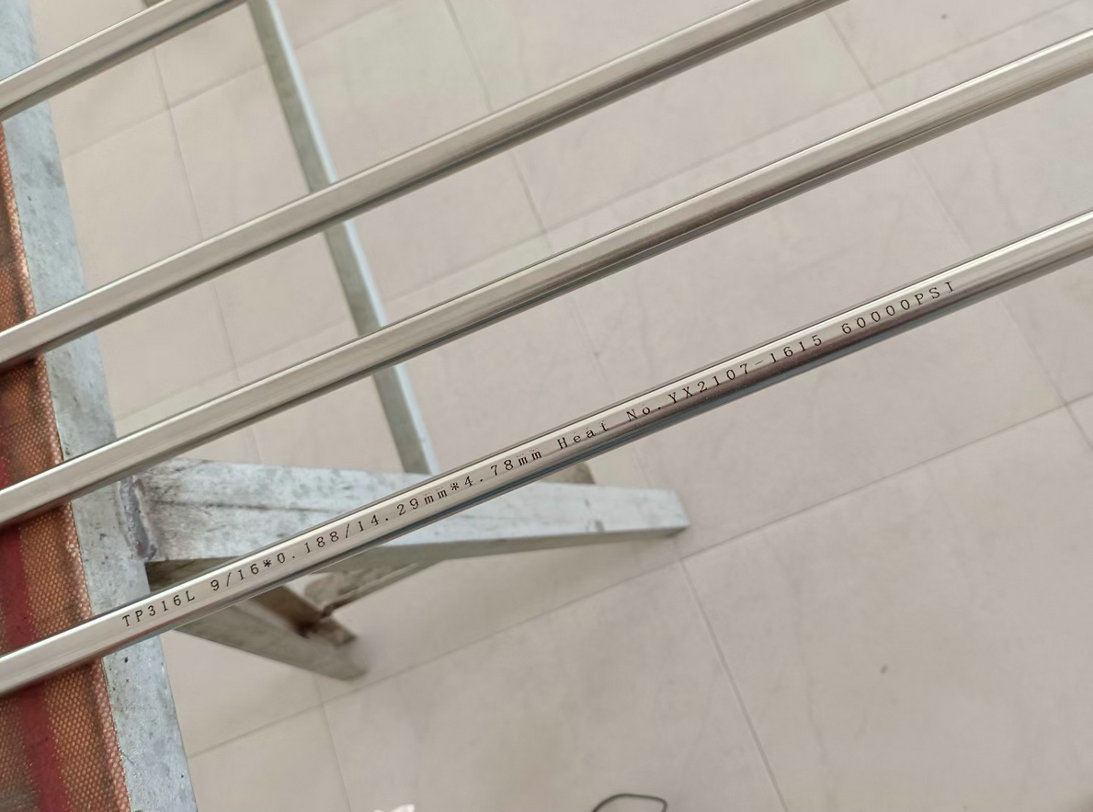

| Marking | LOGO, Standard, Grade, Size, Heat Number. | |||||||||

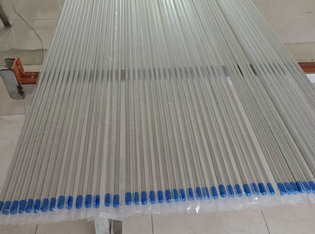

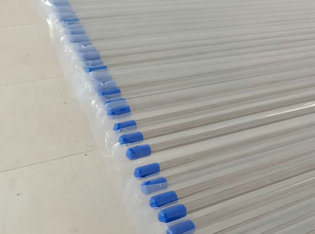

| Package | Woven bag, wooden cases, or as per customer's requirement. | |||||||||
| Quality Requirement | Mill Test Certificate (EN 10204/3.1); Third Part Inspection is acceptable. | |||||||||
| Normal Size | |||||
| OD 3/16” | WT0.02” | 4.76x0.51mm | OD3/16” | WT0.028” | 4.76x0.71mm |
| OD3/16” | WT0.035” | 4.76x0.89mm | OD3/16” | WT0.049” | 4.76x1.24mm |
| OD0.24” | WT0.04” | 6x1mm | OD0.24” | WT0.06” | 6x1.5mm |
| OD1/4” | WT0.02” | 6.35x0.51mm | OD1/4” | WT0.028” | 6.35x0.71mm |
| OD1/4” | WT0.035” | 6.35x0.89mm | OD1/4” | WT0.049” | 6.35x1.24mm |
| OD1/4” | WT0.065” | 6.35x1.65mm | OD5/16” | WT0.028” | 7.94x0.71mm |
| OD5/16” | WT0.035” | 7.94x0.89mm | OD5/16” | WT0.049” | 7.94x1.24mm |
| OD5/16” | WT0.065” | 7.94x1.65mm | OD3/8” | WT0.028” | 9.53x0.71mm |
| OD3/8” | WT0.035” | 9.53x0.89mm | OD3/8” | WT0.049” | 9.53x1.24mm |
| OD3/8” | WT0.065” | 9.53x1.65mm | OD0.4” | WT0.04” | 10x1mm |
| OD0.4” | WT0.06” | 10x1.5mm | OD0.4” | WT0.079” | 10x2mm |
| OD0.47” | WT0.065” | 12x1mm | OD0.47” | WT0.06” | 12x1.5mm |
| OD1/2” | WT0.028” | 12.7x0.71mm | OD1/2” | WT0.035” | 12.7x0.89mm |
| OD1/2” | WT0.049” | 12.7x1.24mm | OD1/2” | WT0.065” | 12.7x1.65mm |
| OD0.55” | WT0.04” | 14x1mm | OD0.55” | WT0.06” | 14x1.5mm |
| OD5/8” | WT0.028” | 15.88x0.71mm | OD5/8” | WT0.035” | 15.88x0.89mm |
| OD5/8” | WT0.049” | 15.88x1.24mm | OD5/8” | WT0.065” | 15.88x1.65mm |
| OD5/8” | WT0.083” | 15.88x2.11mm | OD0.63” | WT0.065” | 16x1mm |
| OD0.63” | WT0.06” | 16x1.5mm | OD0.63” | WT0.079” | 16x2mm |
| OD3/4” | WT0.04” | 19.05x1mm | OD3/4” | WT0.049” | 19.05x1.24mm |
| OD3/4” | WT0.065” | 19.05x1.65mm | OD3/4” | WT0.083” | 19.05x2.11mm |
| OD1” | WT0.049” | 25.4x1.24mm | OD1” | WT0.0665” | 25.4x1.65mm |
| OD1” | WT0.083” | 25.4x2.11mm | OD1” | WT0.1” | 25.4x2.54mm |
Application:
Instrument Tubing
Chromatography tubing
Hydraulic Tubing
High Pressure Tubing
Cleaned Tubing
Multi Core Tubing
Heat Exchanger
Etc.
Inspection:
PMI Test
Hydraulic Test
Eddy Current Test
Non-Destructive Test
Etc.
